Nome da marca: NoEnName_Null
Químico Hign-em causa: Nenhum
Origem: CN (Origem)
Bateria incluída na bateria: YES
Número do modelo: HPCS310P/HPCS330P
Faixa de comprimento de onda: 350-800nm
Faixa de medição: 350-800nm
Peso: 200g
Name: Aquarium par meter HPCS310P PPFD Grow light Tester
Illuminance range: 5-200000lx
Illuminance accuracy: 4%
Function: ED LIghitng design
FWHM: 4nm
Integration Time: 50us-10000ms
Battery: 100mA
Bluetooth signal: 0-10M
Probe size: 17mm cosine corrector
HPCS310P/HPCS330P Wireless Spectral irradiance colorimeter, integrated PAR PPFD FLICKER spectrum, CCT, CRI, Lux, .etc parameters in one. With 3.5 inch touch screen, Real-time display of measurement parameters and curves ,use convenient and fast.not only measure LED wide spectrum light source ,but also measure CFL?HID narrow spectrum light source.
Parameters:
PAR PPFD umol/m2/s
Flicker ,flicker frequency , flicker index
CCT(K) illuminance(lx) Candlelight(fc) Duv
CIE1931 Coordinate x,y
CIE1960 Coordinate u,v
CIE1976 Coordinate u',v'
CRI (Ra) R1-R15 SDCM
Red ratio(%) Green ratio(%) Blue ratio(%)
Colour Tolerance Ellipticgraph
Peak wave(nm) Purity%?
CRI circular graph
Half width(nm) S/P
Dominant(nm?
Spectral Power Distribution
Central wave(nm) Centroid (nm)
Warranty: 1 year

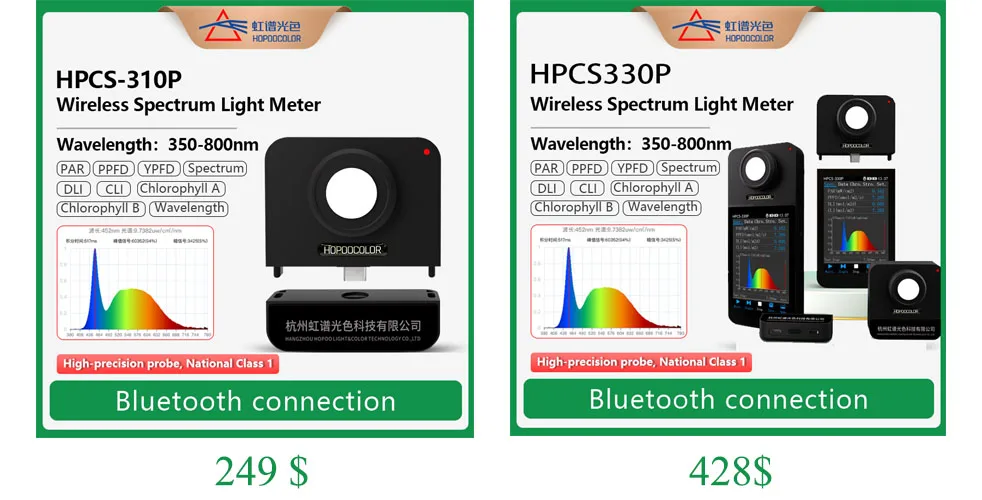

The Link include two models : HPCS310P and HPCS330P

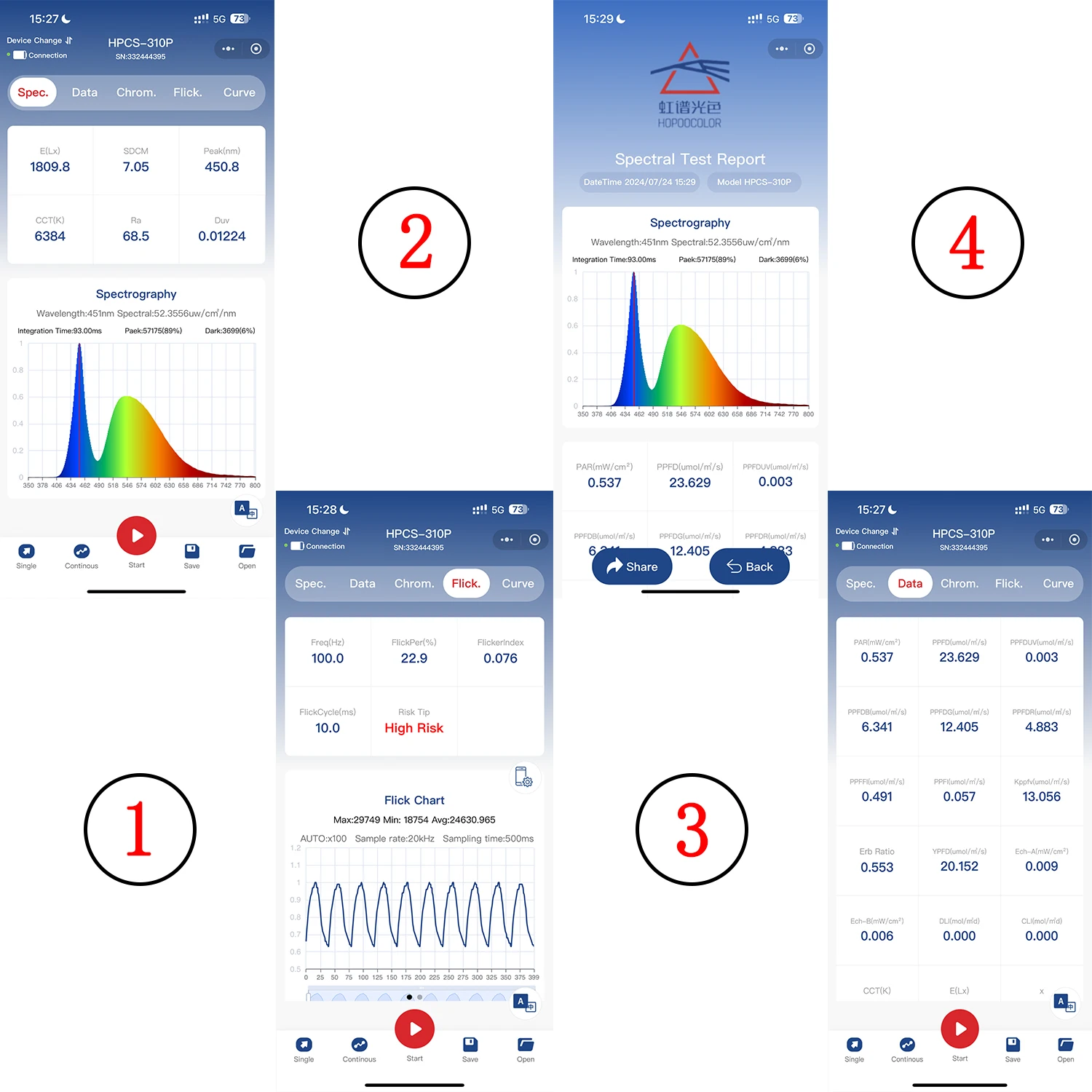

HPCS310P support Android phone app and pc software only .
HPCS330P support Android phone app and pc software, also with display which can save test data .
Specification:
HPCS-330P Wireless spectral illuminmeter | Wavelength:350-800nm |
Light distribution platform | Light distribution platform |
sensor | high-accuracy CCD |
Light-receiving devices | ? 17mm, cosine finmer |
The wavelength accuracy | ± 0.5nm |
Aaccording accuracy | Level 1 (± 4% reading ± 1 reading) |
Spectral Bandwidth(FWHM) | 4nm |
Range of illumination measurements | 5-200000Ix |
Color temperature measurement range | 1000-100000K |
integration time | 50us-10000ms |
display screen | A 3.5-inch HD touch screen(HPCS310P without) |
data interface | Bluetooth / USB Type C |
Bluetooth communication distance | 0~10m (no barrier) |
language | Simplified Chinese / English |
Host storage capacity | Built-in 4G Bit(HPCS310P without) |

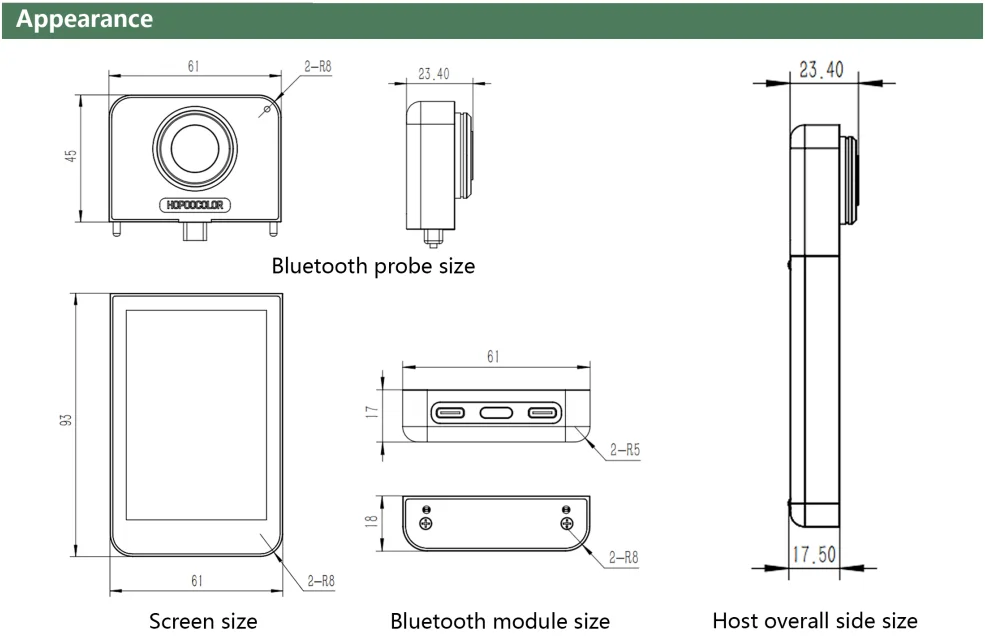

Dimensions (LxWxH) | 138*61*23.4mm |

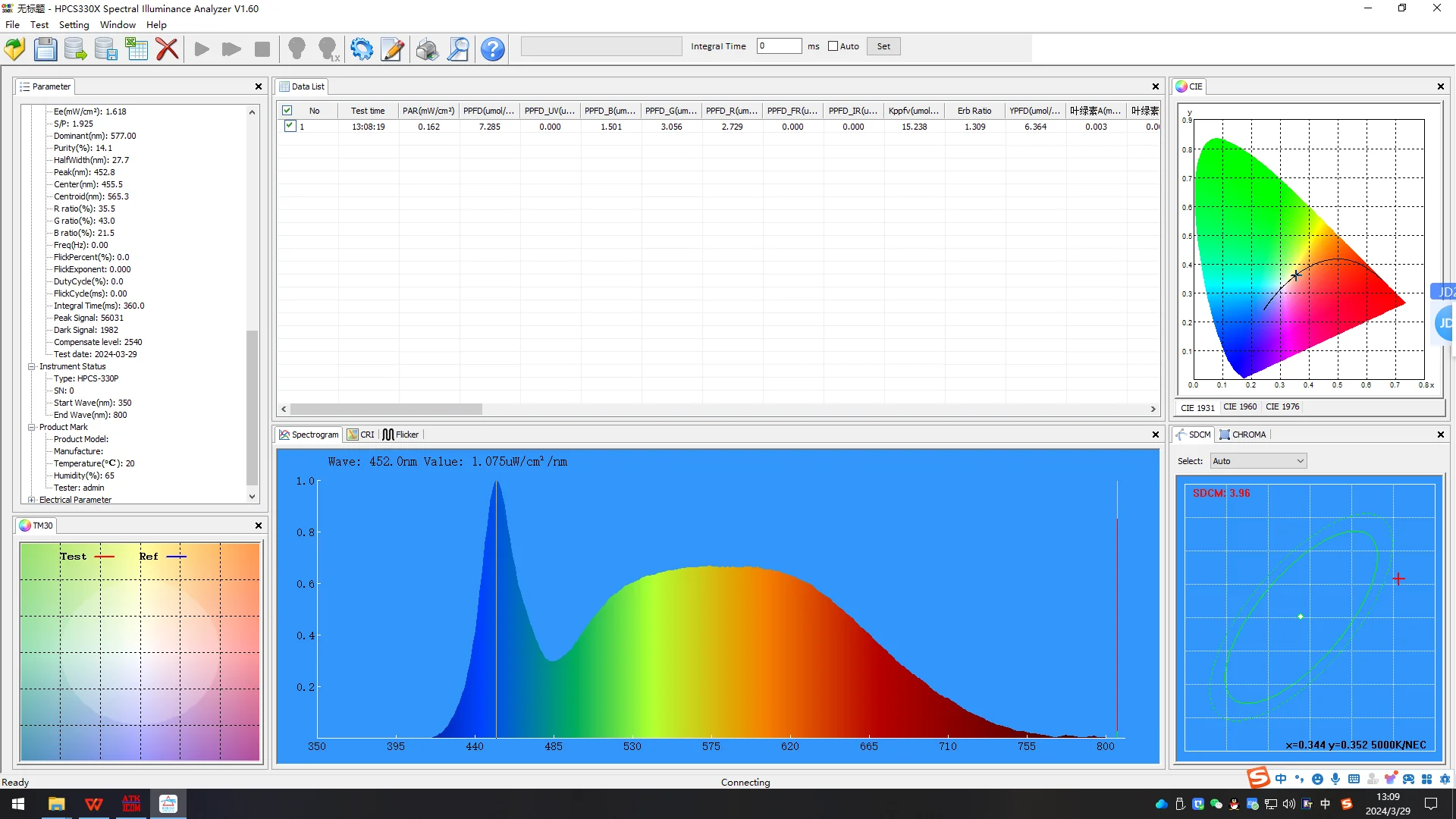

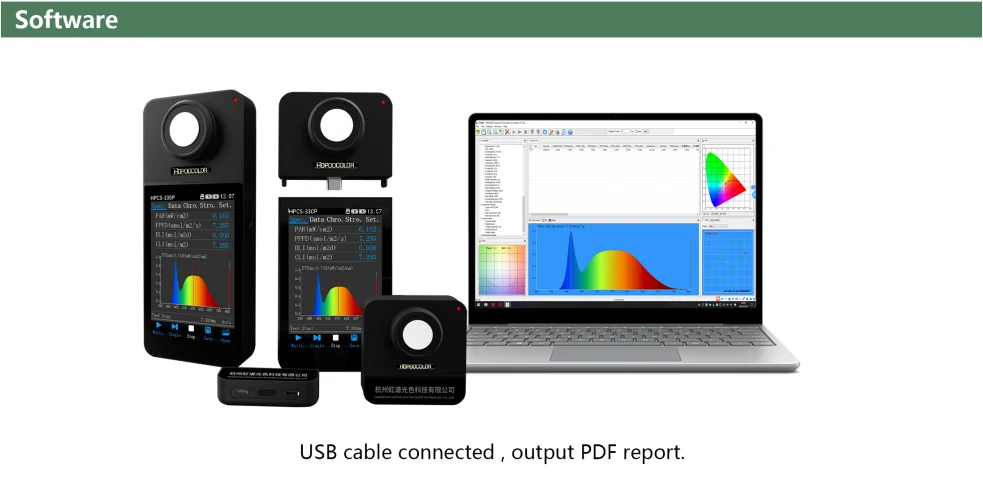

Support Wechat Program , Android Phone App, Pc software

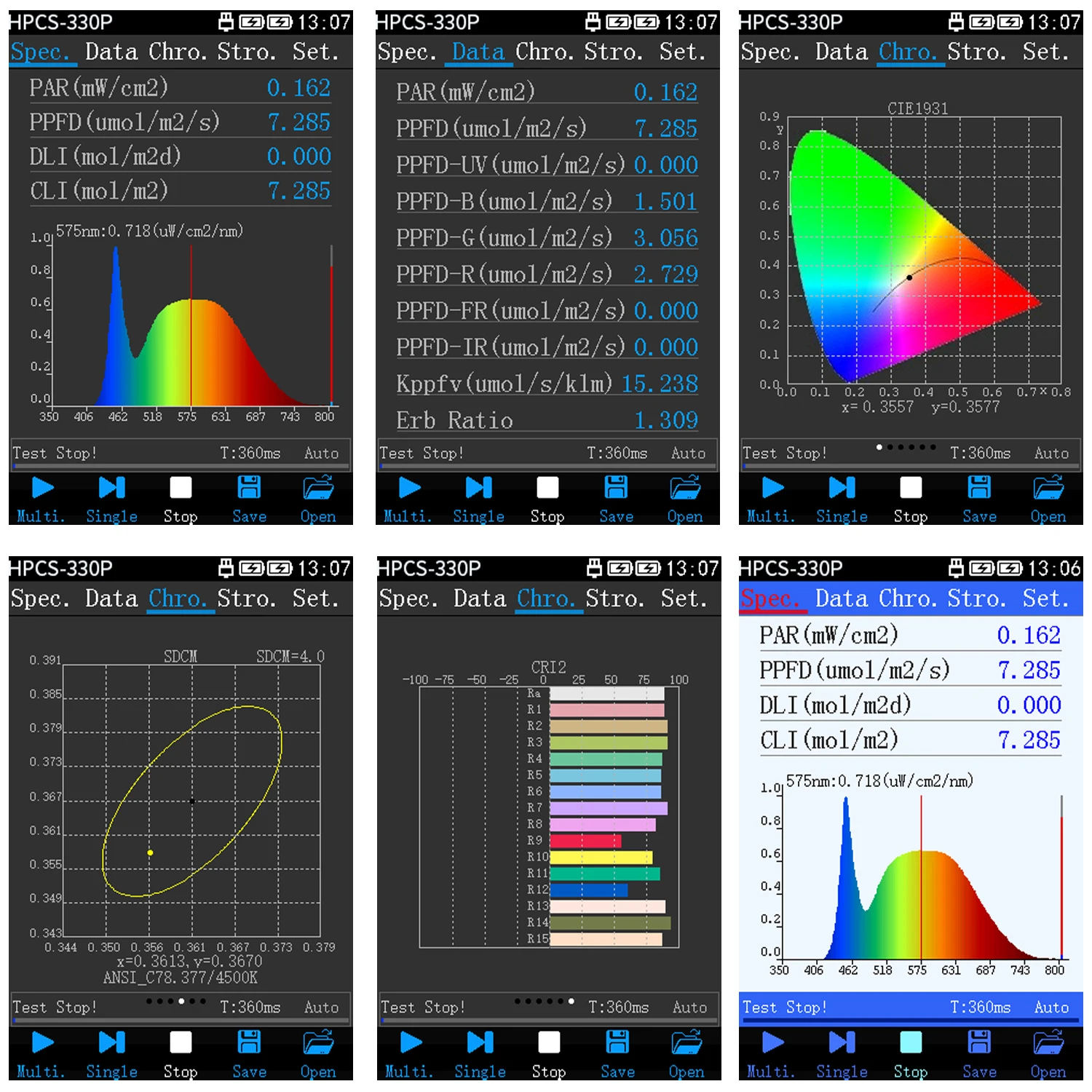

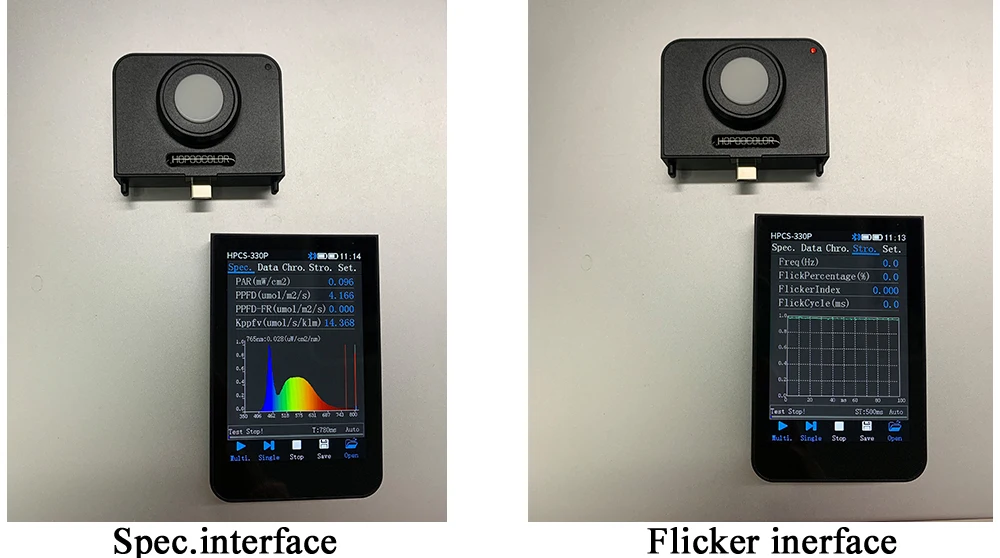

HPCS330P models screen
